Dynalco德納科 SPD-100 Tachometer信號供電數字轉速表
SPD-100 Signal-Powered Digital Tachometer
SPD100 系列SPD-100 轉速表轉速表：信號供電，4 位。本質安全、不發光顯示屏
描述SPD-100 是一款固態、本質安全的轉速表。門時間范圍（0.26 至 5.70 秒）可現場編程。它密封良好，適用于崎嶇的室內和室外應用。它具有 4 位不發光的 LCD 顯示屏。獲得 CSA 和 ABS 型式認證。SPD-100L 轉速表轉速表：信號供電，4位，發光顯示屏SPD-100L 是一款固態轉速表。門時間范圍（0.26 至 5.70 秒）可現場編程。它密封良好，適用于崎嶇的室內和室外應用。它具有 4 位發光的 LCD 顯示屏。SPD-108 轉速表轉速表：信號供電，4位，本質安全，無照明顯示屏，SPD-100的1/2門時間范圍。SPD-108 是一款固態本質安全轉速計，具有現場可編程的柵極時間范圍（0.13 至 2.85 秒）。它密封良好，適用于崎嶇的室內和室外應用。它具有 4 位不發光的 LCD 顯示屏。獲得 CSA 和 ABS 型式認證。SPD-108L 轉速表轉速表：信號供電，4位，發光顯示屏，SPD-100的1/2門時間范圍。SPD-108L 是一款固態轉速計，具有可現場編程的柵極時間范圍（0.13 至 2.85 秒）。它密封良好，適用于崎嶇的室內和室外應用。它具有 4 位發光的 LCD 顯示屏。
特征
- 信號和功率完全來自磁拾取器或脈沖發生器。
- 本質安全�？稍谖ｋU環境中使用經批準的 Dynalco 拾音器。
- 無電源連接。對電噪聲的高抗擾度。
- 可進行現場校準。
- 高精度：1 rpm 分辨率。
- 高抗沖擊和抗振動性。
- 標準 SAE 外殼尺寸適合具有 3-3/8 英寸（86 毫米）開口的面板。
- 墊片和防噴淋。
- 非常適合 OEM 使用。
- 可與調速器和/或速度開關并聯。
- 可以共享現有的拾音器或脈沖發生器;僅消耗微安。
- 無接地端子沒有極性;易于安裝。
技術資料下載:
- SPD-100 Data Sheet
- SPD-100 Manual
- SPD-100 Agency Approval (CSA)
- SPD-100 Agency Approval (ABS)
- Dynalco SPD-100/SPD-108/M219/M318/M319 CSA Approval
- Dynalco SPD-100/SPD-108/M219/M318/M319 CSA Approval
Product Code: SPD-100
DYNALCO SPD-100是一種固態本安型轉速表。控制時間范圍（0.26至5.70秒）可現場編程。密封性好，適用于堅固的室內和室外應用。 有4位顯示，無燈，液晶顯示。CSA和ABS型式認證。轉速表：信號供電，4位，本安型，無燈顯示.The SPD-100 is a solid- state, intrinsically safe tachometer. The gate time range (0.26 to 5.70 seconds) is field- programmable. It is well- sealed for rugged indoor and outdoor applications. It has 4-digit, unlighted, LCD display. CSA and ABS Type approved.
TACHOMETER: signal-powered, 4- digit, intrinsically safe, unlighted display

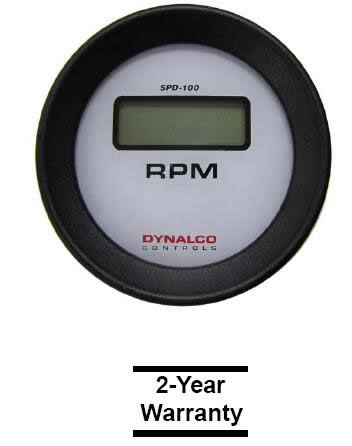

Dynalco SPD-100 Tachometer轉速表
pdf catalog
產品資料下載

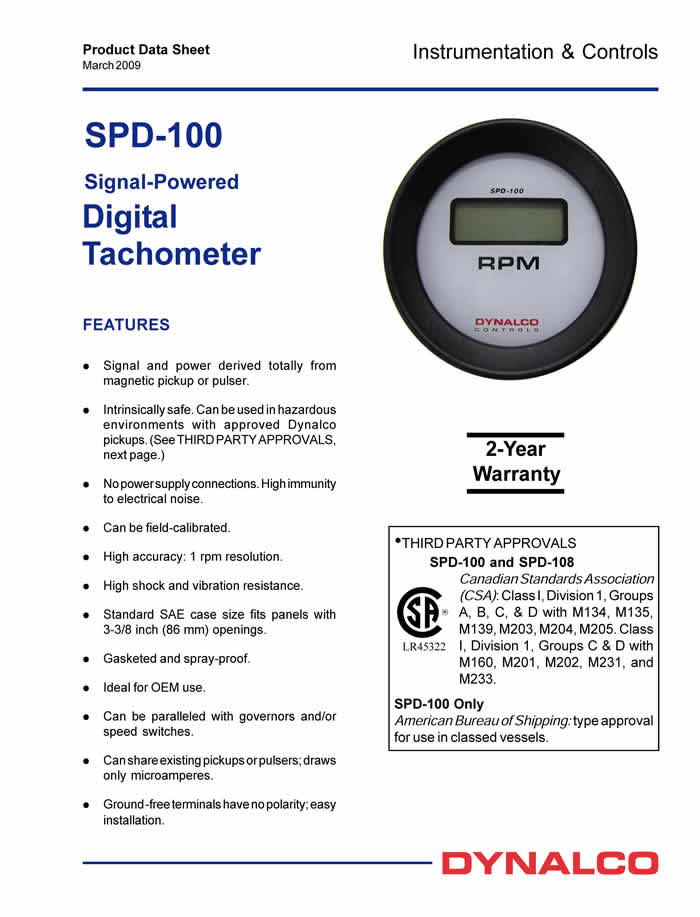

SPD-100 Signal-Powered Digital Tachometer
SPD-100信號供電數字轉速表
規格性能參數：
- 完全由磁傳感器或脈沖發生器產生的信號和功率。Signal and power derived totally from magnetic pickup or pulser.
- 本安型�？稍谖ｋU環境中使用，配備經批準的Dynalco皮卡。（見下頁第三方批準。）Intrinsically safe. Can be used in hazardous environments with approved Dynalco pickups. (See THIRD PARTY APPROVALS, next page.)
- 無需電源連接。高抗電噪聲。No power supply connections. High immunity to electrical noise.
- 可現場校準。Can be field-calibrated.
- 高精度：1轉/分分辨率。High accuracy: 1 rpm resolution.
- 高抗沖擊和振動性。High shock and vibration resistance.
- 標準的SAE外殼尺寸適合具有3-3/8英寸（86 mm）開口的面板。Standard SAE case size fits panels with 3-3/8 inch (86 mm) openings.
- 墊圈和防噴。Gasketed and spray-proof.
- Ideal for OEM use.
- 可與調速器和/或速度開關并聯。Can be paralleled with governors and/or speed switches.
- 可以共享現有的拾音器或脈沖器；只繪制微安表。Can share existing pickups or pulsers; draws only microamperes.
- 無接地端子無極性，安裝方便。Ground-free terminals have no polarity; easy installation.
產品認證：
LR45322
*THIRD PARTY APPROVALS
SPD-100 and SPD-108
Canadian Standards Association
(CSA): Class I, Division 1, Groups
A, B, C, & D with M134, M135,
M139, M203, M204, M205. Class
I, Division 1, Groups C & D with
M160, M201, M202, M231, and
M233.

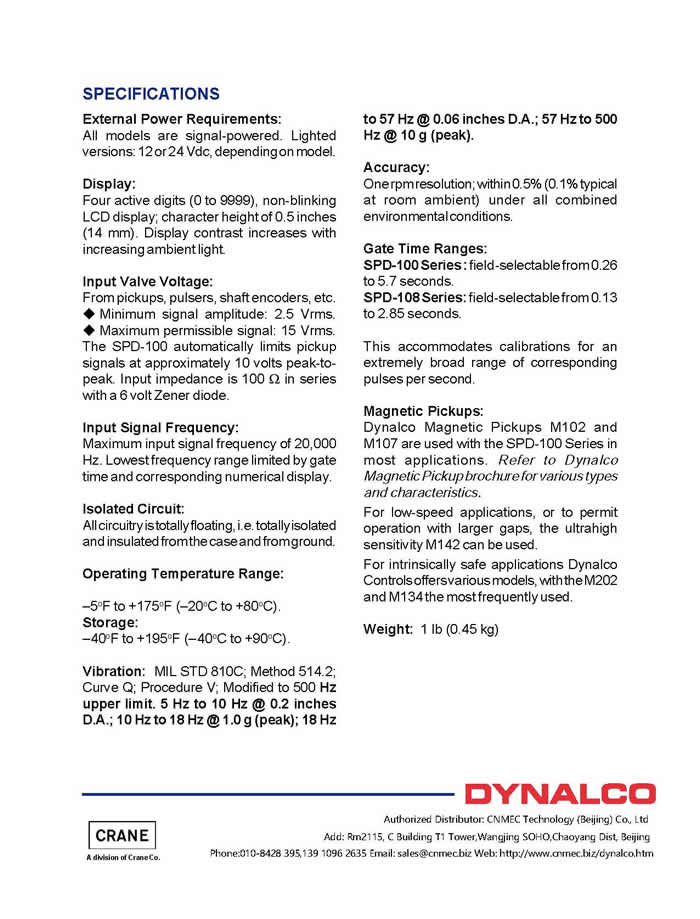

規格參數：
2年質保。2-Year Warranty
外部電源要求：
所有型號均為信號供電。照明版本：12或24 Vdc，取決于型號。
顯示: 四個有效數字（0到9999），不閃爍的LCD顯示屏；字符高度為0.5英寸（14毫米）。隨著環境光的增加，顯示對比度增加。
Four active digits (0 to 9999), non-blinking LCD display; character height of 0.5 inches (14 mm). Display contrast increases with increasing ambient light.
Input Valve Voltage:
From pickups, pulsers, shaft encoders, etc.
- Minimum signal amplitude: 2.5 Vrms.
- Maximum permissible signal: 15 Vrms.
SPD-100自動將磁性探頭信號限制在約10伏峰值峰值。輸入阻抗為100Ω，與6伏齊納二極管串聯。 輸入信號頻率：
輸入信號頻率為20000赫茲。受門時間和相應數字顯示限制的低頻率范圍。隔離電路：所有電路都是完全浮動的，即與外殼和地面完全隔離和絕緣。
工作溫度:
–5oF to +175oF (–20oC to +80oC).
存儲溫度:
–40oF to +195oF (–40oC to +90oC).
振動：mil std 810c；方法514.2；曲線Q；程序V；修改為500 Hz上限。0.2英寸d.a.時為5赫茲至10赫茲；1.0 g（峰值）時為10赫茲至18赫茲；0.06英寸d.a.時為18赫茲至57赫茲；10 g（峰值）時為57赫茲至500赫茲。MIL STD 810C; Method 514.2;
Curve Q; Procedure V; Modified to 500 Hz
upper limit. 5 Hz to 10 Hz @ 0.2 inches
D.A.; 10 Hz to 18 Hz @ 1.0 g (peak); 18 Hz
to 57 Hz @ 0.06 inches D.A.; 57 Hz to 500
Hz @ 10 g (peak).
精度:
一個轉速分辨率；在所有組合環境條件下，在0.5%（0.1%典型室溫下）。One rpm resolution; within 0.5% (0.1% typical
at room ambient) under all combined
environmental conditions.
Gate Time Ranges:
SPD-100 Series : field-selectable from 0.26
to 5.7 seconds.
SPD-108 Series: field-selectable from 0.13
to 2.85 seconds.
This accommodates calibrations for an
extremely broad range of corresponding
pulses per second.
Magnetic Pickups:
Dynalco Magnetic Pickups M102 and
M107 are used with the SPD-100 Series in
most applications. Refer to Dynalco
Magnetic Pickup brochure for various types
and characteristics.
對于低速應用，或允許在較大間隙下操作，可以使用超高靈敏度M142。For low-speed applications, or to permit
operation with larger gaps, the ultrahigh
sensitivity M142 can be used.
對于本安型應用，Dynalco Controls提供各種型號，M202和M134是常用的。For intrinsically safe applications Dynalco
Controls offers various models, with the M202
and M134 the most frequently used.
SPD-100包裝重量： 1 lb (0.45 kg)
SPD SeriesSignal-Powered Tachometers
SPD Series信號動力轉速表
Approvals
Dynalco MTH-103E Tachometer/Hourmeter with Alarm/Trip Output CSA Approvals
Datasheets
Dynalco MTH-103E Tachometer/Hourmeter with Alarm/Trip Output Datasheet
Installation Manuals
Dynalco MTH-103E Tachometer/Hourmeter with Alarm/Trip Output Manual
Miscellaneous
Dynalco Rep Locator
Details
批準書
Dynalco MTH-103E帶有警報/行程輸出CSA認證的轉速表/小時表
數據表
Dynalco MTH-103E帶有警報/行程輸出的轉速表/小時表
安裝手冊
Dynalco MTH-103E轉速表/小時表，帶報警/行程輸出手冊
雜
Dynalco Rep定位器
細節
描述Description
SPD-100轉速表
SPD-100 Tachometer
TACHOMETER：信號供電的4位本質安全型不發光顯示屏
TACHOMETER: signal-powered, 4- digit, intrinsically safe, unlighted display
SPD-100是固態本安轉速表。選通時間范圍（0.26至5.70秒）是現場可編程的。密封良好，適用于堅固的室內和室外應用。它具有4位數的不發光LCD顯示屏。已通過CSA和ABS類型認證。The SPD-100 is a solid- state, intrinsically safe tachometer. The gate time range (0.26 to 5.70 seconds) is field- programmable. It is well- sealed for rugged indoor and outdoor applications. It has 4-digit, unlighted, LCD display. CSA and ABS Type approved.
SPD-100L轉速表
SPD-100L Tachometer
TACHOMETER：信號供電的4位數字帶燈顯示屏
TACHOMETER: signal-powered, 4- digit, lighted display
SPD-100L是固態轉速表。選通時間范圍（0.26至5.70秒）是現場可編程的。它適用于堅固的室內和室外應用。它具有4位帶燈的LCD顯示屏。
The SPD-100L is a solid- state tachometer. The gate time range (0.26 to 5.70 seconds) is field-programmable. It is well-sealed for rugged indoor and outdoor applications. It has 4-digit, lighted, LCD display.
SPD-108轉速表
SPD-108 Tachometer
TACHOMETER：信號供電的4位，本質安全，不發光的顯示器，SPD-100的?門時間范圍
TACHOMETER: signal-powered, 4- digit, instrinsically safe, unlighted display, ? gate time range of SPD-100
SPD-108是一種固態，本質安全的轉速表，其閘門時間范圍（0.13至2.85秒）是現場可編程的。密封良好，適用于堅固的室內和室外應用。它具有4位數的不發光LCD顯示屏。已通過CSA和ABS類型認證。
The SPD-108 is a solid- state, intrinsically safe tachometer with a gate time range (0.13 to 2.85 sec) that is field- programmable. It is well- sealed for rugged indoor and outdoor applications. It has 4-digit, unlighted, LCD display. CSA and ABS Type approved.
SPD-108L轉速表
SPD-108L Tachometer
TACHOMETER：信號供電的4位數字帶燈顯示屏，SPD-100的?門時間范圍
TACHOMETER: signal-powered, 4- digit, lighted display, ? gate time range of SPD-100
SPD-108L是固態轉速表，其閘門時間范圍（0.13至2.85秒）是可現場編程的。它適用于堅固的室內和室外應用。它具有4位帶燈的LCD顯示屏。
The SPD-108L is a solid- state, tachometer with a gate time range (0.13 to 2.85 sec) that is field-programmable. It is well-sealed for rugged indoor and outdoor applications. It has 4- digit, lighted, LCD display.
SPD-100 Tachometer信號供電數字轉速表連接電纜

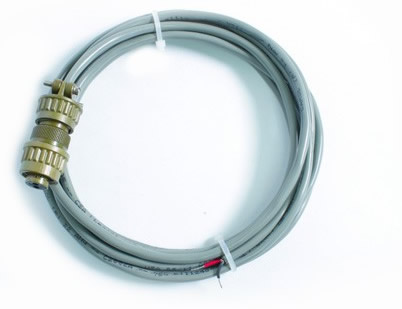

C101-10 Magnetic Pickup / Speed Sensor Cable / Connector Assembly
CLASS 2258 03 -PROCESS CONTROL EQUIPMENT - Intrinsically Safe and Non-Incendive Systems - ForHazardous Locations
PRODUCTS
Class l, Groups A, B,C and D
Supplementary Certification for Digital Tachometer SPD-100 to cover new Dynalco magnetic pick-ups Models M203M204 and M205.
CLASS 2258 02 - PROCESS CONTROL EQUIPMENT - For Hazardous Locations
Class l, Groups A, B. C and D:
Magnctic Pick-up Asscmblv Model Nos.M104.M40.M180. M219.M280. M318. M319.M337 and M341,output rated95V rms(270V.P-P)max005mA max
MARKINGS
Magnctic Pick-Up Assemblies, Models M203,M204,M205 shall bear the following information:
Submittor's identification
Model designation
CSA Monogram
2
Explosion Proof Magnetic Pick-Up Assemblies.Models M104.M140.M180.M219,M280.M318.M319,M337and M341 shall bear the following information.
Submittor's identificationModel designation
Hazardous Location designation
CSA Monogram
Date Code or Serial Number
|
